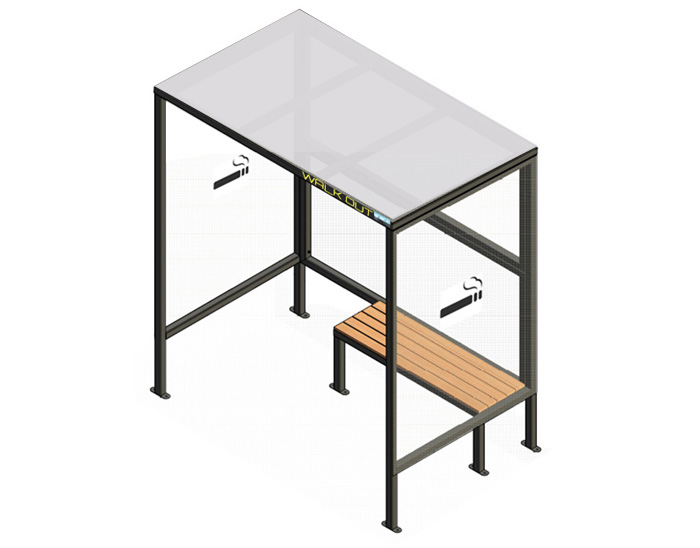

WALK OUT > Modular Smoking Shelter
*Commercial grade, modular, stable mounted, all-in-one-box smoking shelter. Light weight ALUMINUM construction. Only 6 pieces for easy setup. Local bylaw compliant.
Length: 80.3 inches (2040mm)
Width: 47.25 inches (1200mm)
Height: 89.75 inches (2280mm)
Mounting: Flange Surface Mounting
Finish: Polyester powder coating
Technical Reference Drawing
**Final product design may not be exactly as shown
Material Specifications
-2" x 2" Aluminium frame construction
-4mm Polycarbonate side panels & roof
-2.3" (58mm) width Recycled plastic seat planks
-#304 Stainless steel hardware
