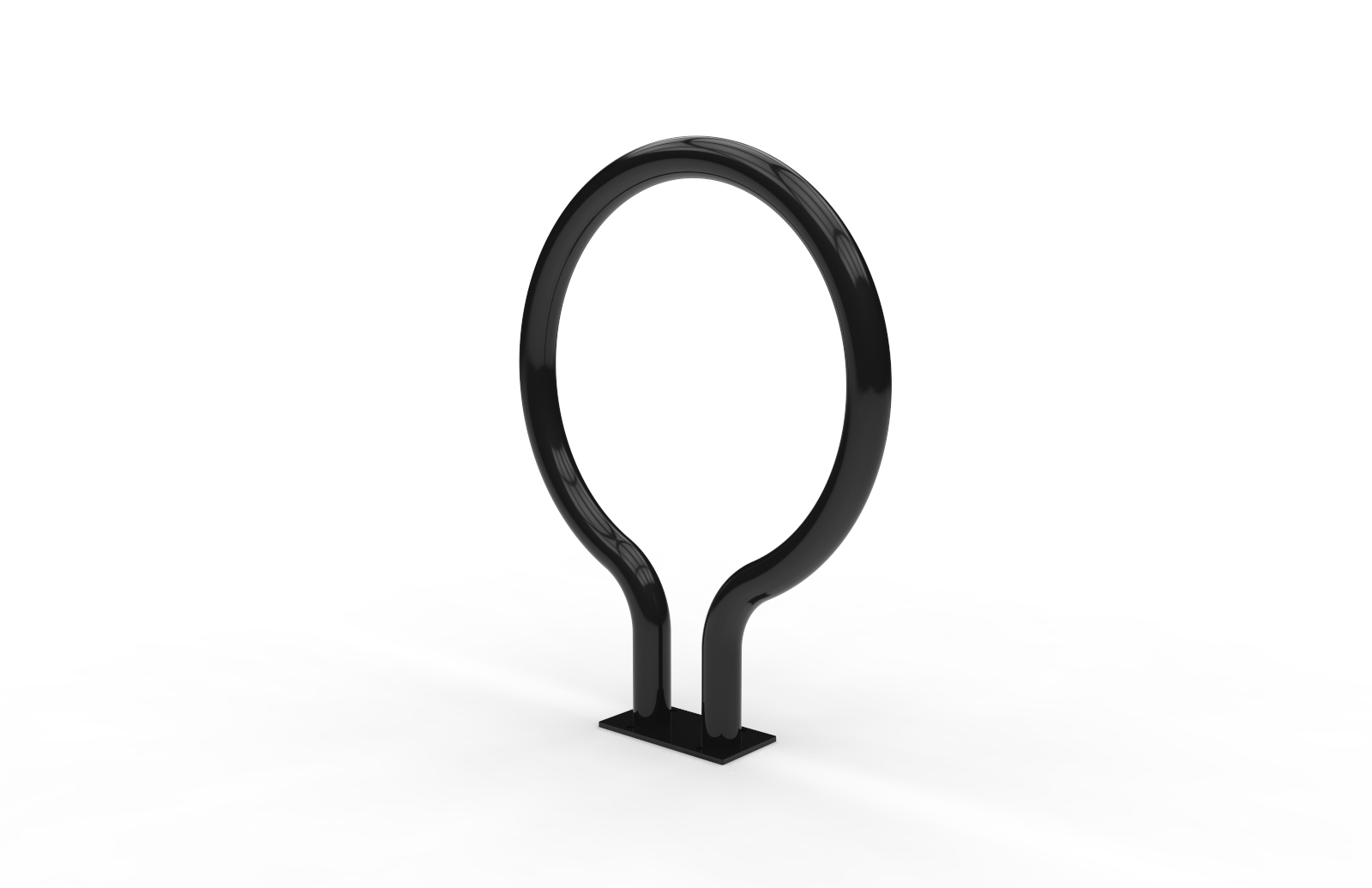

DC 15.51 > Bike Rack
Simple loop style bike rack can be very securely fastened using up to 6 concrete anchor bolts. Optional inground mounting.
Length: 27.6"
Width: 5.2" (with base plate) 2-3/8" pipe diameter
Height: 35.4"
Mounting: i.e. "Surface Anchor Bolts"
Finish: i.e. "Powder Coated"

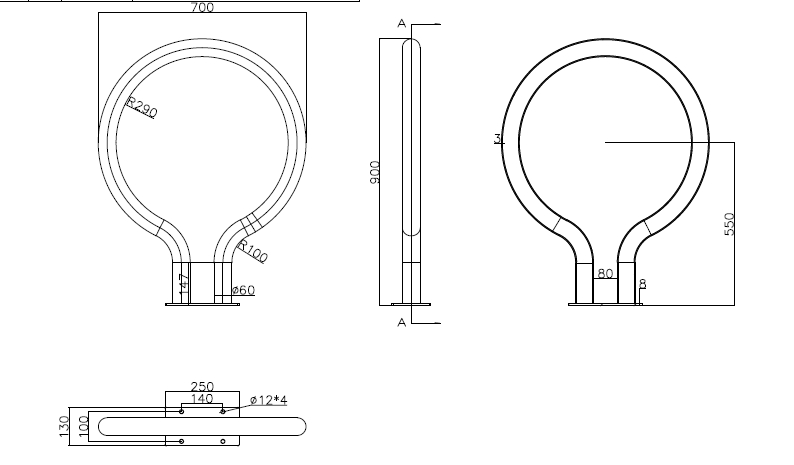

Technical Reference Drawing
**Final product design may not be exactly as shown
Material Specifications
Carbon steel construction
E-coating w/Polyester powder coating finish
304 stainless steel anchoring hardware.
